Master Cylinders, Balance Bars

NASCAR PEDAL BOX -ROAD COURSE-WILWOOD-AP-BREMBO-ALCON-DANICA-

HERE IS A NASCAR PEDAL BOX FROM JR MOTORSPORTS THAT WAS ON A CAR DRIVEN BY DANICA PATRICK. IT HAS # E 0024, AND # TMSPB 002. YOU WILL GET THE ONE PICTURED.

Tilton 75 Series Master Cylinder Bore Size: 3/4”

The Tilton 75 Series Master Cylinder is a high-performance part designed with a bore size of 3/4”. Specifically manufactured by Tilton, this product is known for its quality and reliability in providing braking power for vehicles. Whether for use in a racing car or a high-performance street vehicle, the Tilton 75 Series Master Cylinder is a trusted choice for achieving optimal braking performance.

Tilton 76 Series Brake or Clutch Master Cylinder 0.750" - 3/4" - 19.1mm bore

The Tilton 76 Series Brake or Clutch Master Cylinder with a 3/4" bore size is a high-performance part suitable for car tuning and styling. This master cylinder, manufactured by Tilton, is designed for optimal braking and clutch control with a 5/16-24 UNF push rod option. With a weight of 0.4 KG, this product is a reliable choice for enhancing the braking system of your vehicle. Part of a garage clearance, appears very lightly used if at all

AFCO Rev Mount Dual Swing Brake/Clutch Pedals, 6.25:1 Ratio w/ masters 072225-10

AFCO 6610000 Reverse Mount Dual Swing Brake/Clutch Pedals, 6.25:1 Ratio with reverse mount master cylinders 3/4"--1"--1".

Nascar Road Course Tilton 900 Series Brake Pedal Set w/ Reservoir Wilwood Alcon

Installs just like a standard Tilton hanging set. Reservoir is Tilton two piece. brake pedal / master cylinder set. Masters are Tilton 78 series billet aluminum, re-buildable, short cut off push style.

1) BMRS -4 Lt wt braided lines AN-4 orb / AP orb Brembo Alcon race 061725-25

BMRS Lt wt braided lines. BMRS Lt wt braided -4 line. Has AP style AN -4 orb 90 fitting on other end. Has AN -4 orb straight fitting on one end.

1) BMRS -4 Lt wt braided lines ST AN-4 / AP orb Brembo race Alcon 061725-30

BMRS Lt wt braided lines. BMRS Lt wt braided -4 line. Has AP style AN -4 orb 90 fitting on other end.

NOS Tilton 77-875 Brake Master Cylinder 77 Series 7/8" Bore

Tilton 77-875 77 Series Pivot-Type Master Cylinder 7/8" Bore. The rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking.

Nascar Road Course Tilton 600 Series Brake Pedals w/ 77 Series Master Cylinders

NOS Tilton 607 under slung, push style brake pedal / master cylinder set. Brake masters are Tilton 77 series billet aluminum, re-buildable, short cut off push style, 13/16" front, 7/8" rear & a Tilton 75 series 3/4" clutch.Installs just like a standard Tilton hanging set.

21.2 mm (.834") AP CP6465-212 Pull Style trunnion mt Master Cycl race 062425-67

1 Used AP Racing CP6465-212 Pull Style 21.2 mm (.834") trunnion mount Master Cylinder. It has a built in trunnion mounted in needle roller bearings for direct mounting to the balance bar. This cylinder operates on the pull rather than push principle of other cylinders.

New RCP long swing clutch pedal RACE oval 042926-11

1 New RCP long pedal swing style clutch pedal Alum.

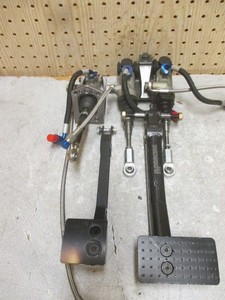

Roush Yates AP CP5517 Road Course Brake Pedal Set w/ Reservoirs Tilton Wilwood

Uses AP 6465 Trunnion mount, short cut off aluminum pull type master cylinders. This is the Roush chassis version w/ adjustable pedal stop. Pictures say it all. Best money can buy!

AP CP5517 Brake Pedal Balance Bar Mount Assembly Tilton Wilwood

Commonly used with AP CP6465 series pull type racing brake master cylinders.

AP CP5517 Brake Pedal Balance Bar Extension Legs w/ Heims Tilton Wilwood

Good used, AP Racing Nascar Cup Style, AP 5517 series, brake pedal balance bar extension leg set w/ Heim.

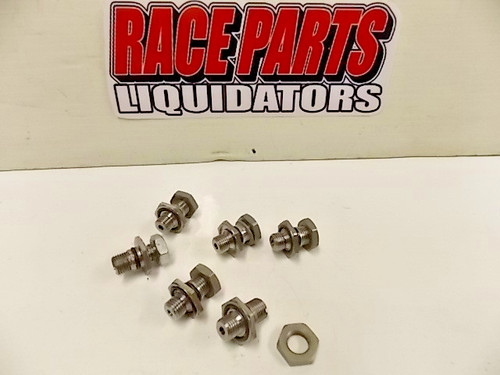

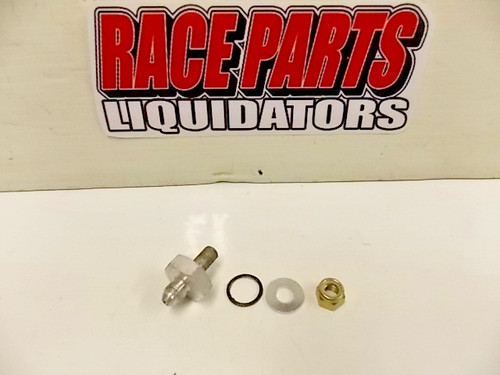

AP #CP2623-526 Brake Reservoir tank adapter fitting AN-4 race brembo 062425-49

AP #CP2623-526 Brake Reservoir tank adapter fitting AN-4.

Used Tilton 77-875 Brake Master Cylinder 77 Series 7/8" Bore

Tilton 77-875 77 Series Pivot-Type Master Cylinder 7/8" Bore. The rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking.

Wilwood long pedal hanging swinging brake pedal tilton cnc race dirt 072225-12

1 used Wilwood hanging swinging brake pedal with long pedal. Hanging swinging brake pedal.

Pedal hanging swinging brake pedal With Pad. Off 1955 Chevy #847

• Item may be compatible with other years and models - search part number for more details. • Each country enforces different fees and unique policies that are outside our influence. LOCAL PICKUP.

Billet alum CV Products 3/4-16 brake / clutch fluid reservoir Alcon 062425-11

Tilton 74-Series Universal Brake Master Cylinder Kit, 1.125" Bore 74-1125U

A used Tilton 1 1/8" master cylinder kit in good working order with reservoir, a remote as well, fill bulb, hose line and clamps. Price is a bit more than 1/2 of a new one and includes free USPS shipping, Thanks for looking.

AP CP6465-202 Pull Style 20.2mm (.795") trunnion mount Master Cycl 062025-10

1 Used AP Racing CP6465-202 Pull Style 20.2mm (.795") trunnion mount Master Cylinder. It has a built in trunnion mounted in needle roller bearings for direct mounting to the balance bar. This cylinder operates on the pull rather than push principle of other cylinders.

Winters Performance 6-1 floor mount short pedal tilton cnc race dirt 072225-16

1 used Winters Performance floor mount short brake pedal. 6-1 pedal push ratio.

Billet Alum 3 Chamber Brake Fluid Reservoir BMRS L/W lines AP race 061725-15

L/W BMRS lines with banjo fittings 1 end and oter end has the AP style o-ring master cylinder fitting. Billet Alum 3 Chamber Compact Brake Fluid Reservoir. 3-Chamber Alum Reservoir. Billet / fabricated alum material.

Wilwood 340-1285 floor mount short pedal tilton cnc race dirt 072225-15

1 used Wilwood floor mount short brake pedal. 5.63 pedal push ratio.

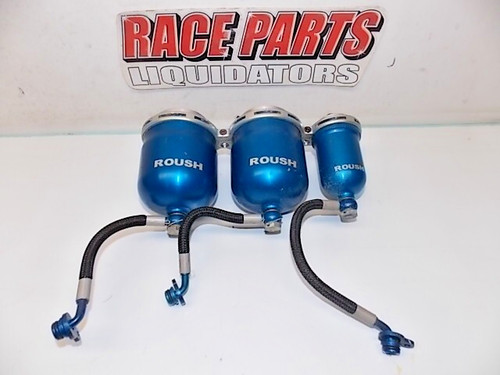

Roush Spun Alum 3 tank brake fluid reservoirs BMRS L/W lines AP race 061725-1

ROUSH BRAKE FLUID RESERVOIR BILLET SPUN ALUM 3 TANK WITH MOUNTING BRACKET AND L/W BMRS LINES. DIRECT FROM ROUSH RACING. THE FITTING ON THE END FITS MOST COMMON AP STYLE MASTER CYLINDERS. common with AP Brembo PFC Performance Friction style master cylinders.

Wilwood Brake Pedal Hanging Forward Mount 340-13832 Dual Cyl Adjustable Like New

Wilwood Hanging Forward Mount Hanging Brake Pedal. Wilwood Pedal part # 340-13832.

Roush Spun Alum 3 tank brake fluid reservoirs BMRS L/W lines AP race 061725-3

ROUSH BRAKE FLUID RESERVOIR BILLET SPUN ALUM 3 TANK WITH MOUNTING BRACKET AND L/W BMRS LINES. DIRECT FROM ROUSH RACING. THE FITTING ON THE END FITS MOST COMMON AP STYLE MASTER CYLINDERS. common with AP Brembo PFC Performance Friction style master cylinders.

1" AP Racing CP2623 master cylinder race brembo tilton wilwood 062425-62

1 AP Racing 1" (25.4 mm) master cylinder #CP2623-96 from top NASCAR team surplus inventory. A lightweight compact forged bodied master cylinder suitable for all brake and clutch applications especially where space is restricted.

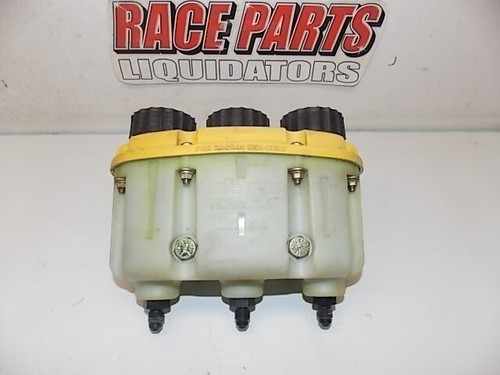

Tilton 3 Chamber Brake And Clutch Fluid Reservoir (AN -4 Fitting) race 061725-9

Tilton 3 Chamber Compact Brake And Clutch Fluid Reservoir (AN -4 Fitting) #72-577. Reservoir lid incorporates screens to prevent foreign objects (nuts, bolts, etc.) from falling into reservoir. Leak-proof baffle design ensures that fluid remains in reservoir.

Roush Spun Alum 3 tank brake fluid reservoirs BMRS L/W lines AP race 061725-4

ROUSH BRAKE FLUID RESERVOIR BILLET SPUN ALUM 3 TANK WITH MOUNTING BRACKET AND L/W BMRS LINES. DIRECT FROM ROUSH RACING. common with AP Brembo PFC Performance Friction style master cylinders. LINES CAN BE CHANGED OUT TO DIFFERENT STYLE OF FITTINGS INSTALLED TO USE A DIFFERENT STYLE LINES.

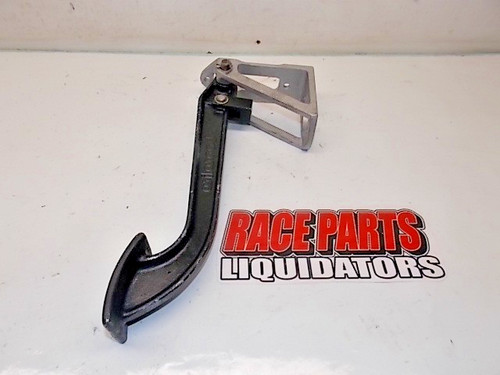

WILWOOD 340-1290 FORWARD FACING SWING MOUNT CLUTCH PEDAL race tilton 072225-20

1 Used WILWOOD ALUMINUM, FORWARD FACING master cylinder, SWING MOUNT CLUTCH PEDAL. 7-1 pedal push ratio.

1) BMRS Lt wt steel braided lines w/ Banjo bolt style ends Brembo race 061725-19

BMRS Lt wt steel braided lines. BMRS Lt wt steel braided -3 line. Has AN banjo fitting on Both ends.

Alum Fluid reservoir with 3/4" & 7/8" AP 2623 style master cylinders 071225-24

Alum Fluid reservoir with 3/4" & 7/8" AP 2623 style master cylinders. alum tank has AN fittings at the bottom to you can connect 2 lines for 3 master cylinders.

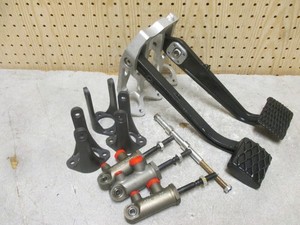

Nascar Road Course Tilton 77 Series Brake Pedal Set Wilwood AP Brembo Alcon

Installs just like a standard Tilton hanging set. Reservoir is Tilton two piece. brake pedal / master cylinder set. Masters are Tilton 77 series billet aluminum, rebuildable, short cut off push style, 13/16" front, 7/8" rear & 3/4" clutch.

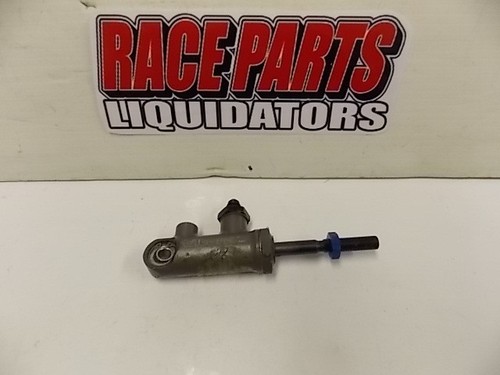

19.1 mm (.750") Tilton 77-750 Push Style trunnion mt Master Cycl race 062425-69

1 Used 3/4" Tilton 77-750 Push Style 19.1 mm (.750") trunnion mount Master Cylinder. Tilton 77 Series. The revolutionary 77-Series master cylinders are lightweight and compact. The unique pivoting rear mount and one-piece pushrod/piston unit eliminate unwanted sideways loads in the bore.

Nascar Road Course Tilton 77 Series Brake Pedal Set & Reservoir Wilwood AP Alcon

Welded light weight steel alloy brake pedal. Installs just like a standard Tilton hanging set. brake pedal / master cylinder set. Masters are Tilton 77 series billet aluminum, re-buildable, short cut off push style.

Alum AP Brake fluid reservoir 15/16-20 thread Alcon tilton brembo race 062425-1

Alum 1 Chamber Compact Brake Fluid Reservoir. 1-Chamber Alum Reservoir. fabricated alum material. Leak-proof design ensures that fluid remains in reservoir. 15/16-20 thread screws into AP master cylinders (see pictures).

7/8" Tilton 22.2 mm (.875) #77-875 Push Style Pivot mt Master Cycl road race 11

1 Used 7/8" Tilton 77-875 Push Style 22.2 mm (.875") Pivot mount Master Cylinder. Tilton 77 Series. The revolutionary 77-Series master cylinders are lightweight and compact. The unique pivoting rear mount and one-piece pushrod/piston unit eliminate unwanted sideways loads in the bore.

13/16" MAR5230HM161MBB Alcon Racing pivot mt 20.62 mm Master Cycl race Brembo 80

1 Used 13/16" (20.62 mm). 812 Alcon Racing Push Type MAR5230HM161MBB Master Cylinder pivot mount style gold nut. Surplus inventory from a Top Race Team. • Compact design push type master cylinder. • 0.25” high grade spherical bearing allows the master cylinder to rotate with the arc of the pedal and offset of the balance bar to minimise side loads at the push rod.

Tilton 7-1 long pedal rearward mt masters hanging swing brake pedal 072225-18

1 used Tilton long swinging hanging brake pedal for rearward mount master cylinders. 7-1 pedal push ratio.
